The laser projector cooling system is based on a TEC module

Le système de refroidissement du projecteur laser est basé sur un module Peltier

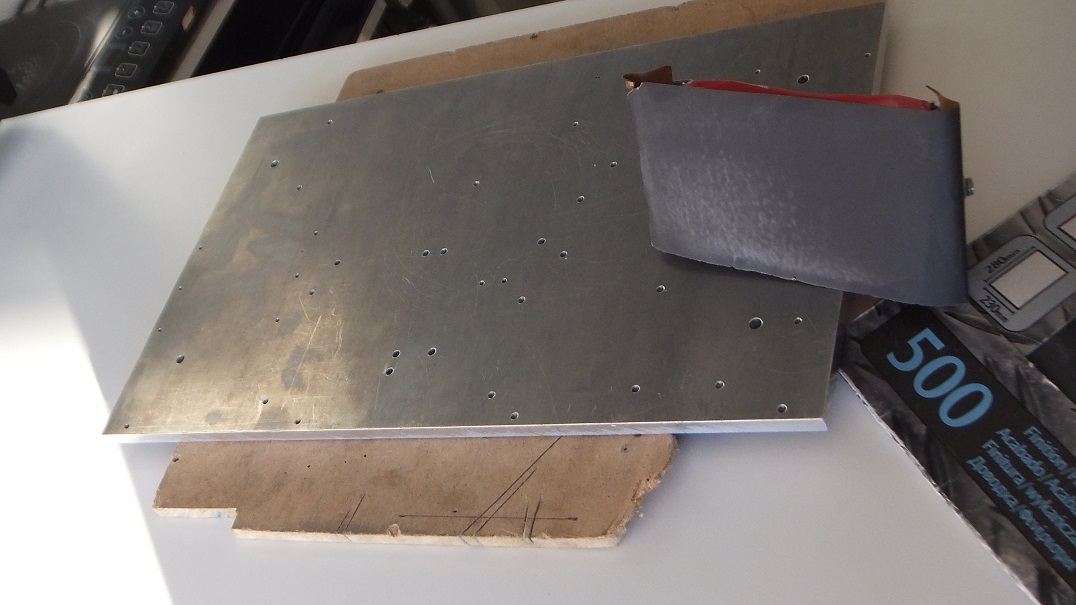

A fine sanding is passed on the beam table

Un ponçage fin est passé sur la beam table

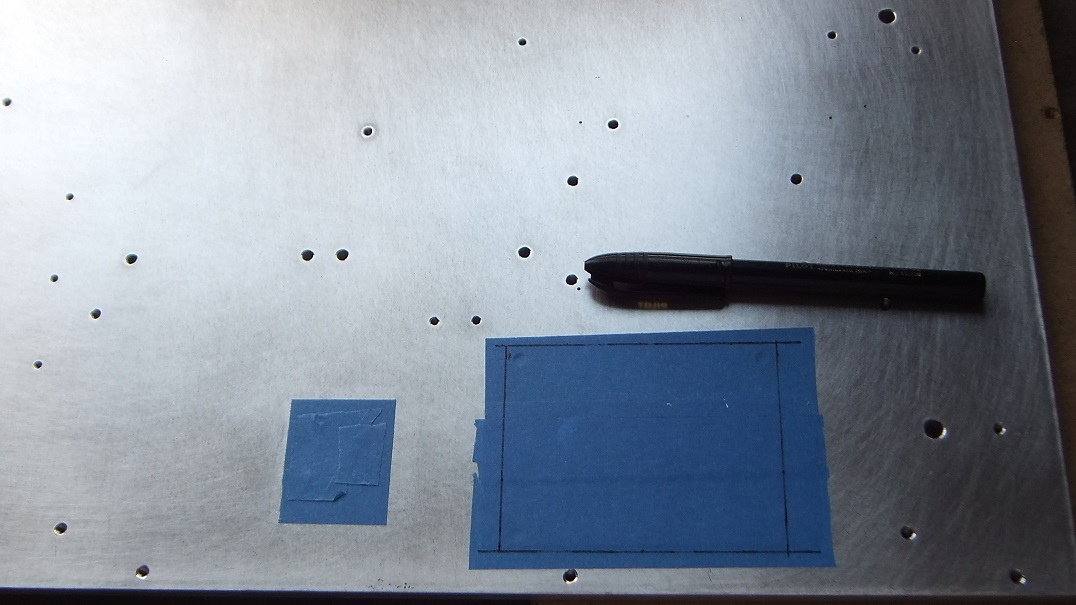

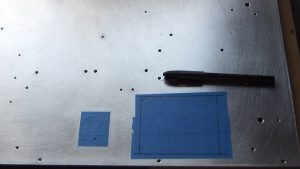

I make masks for scanners, TEC module and laser diode

Je réalise des masques pour les scanners, le Peltier et la diode laser

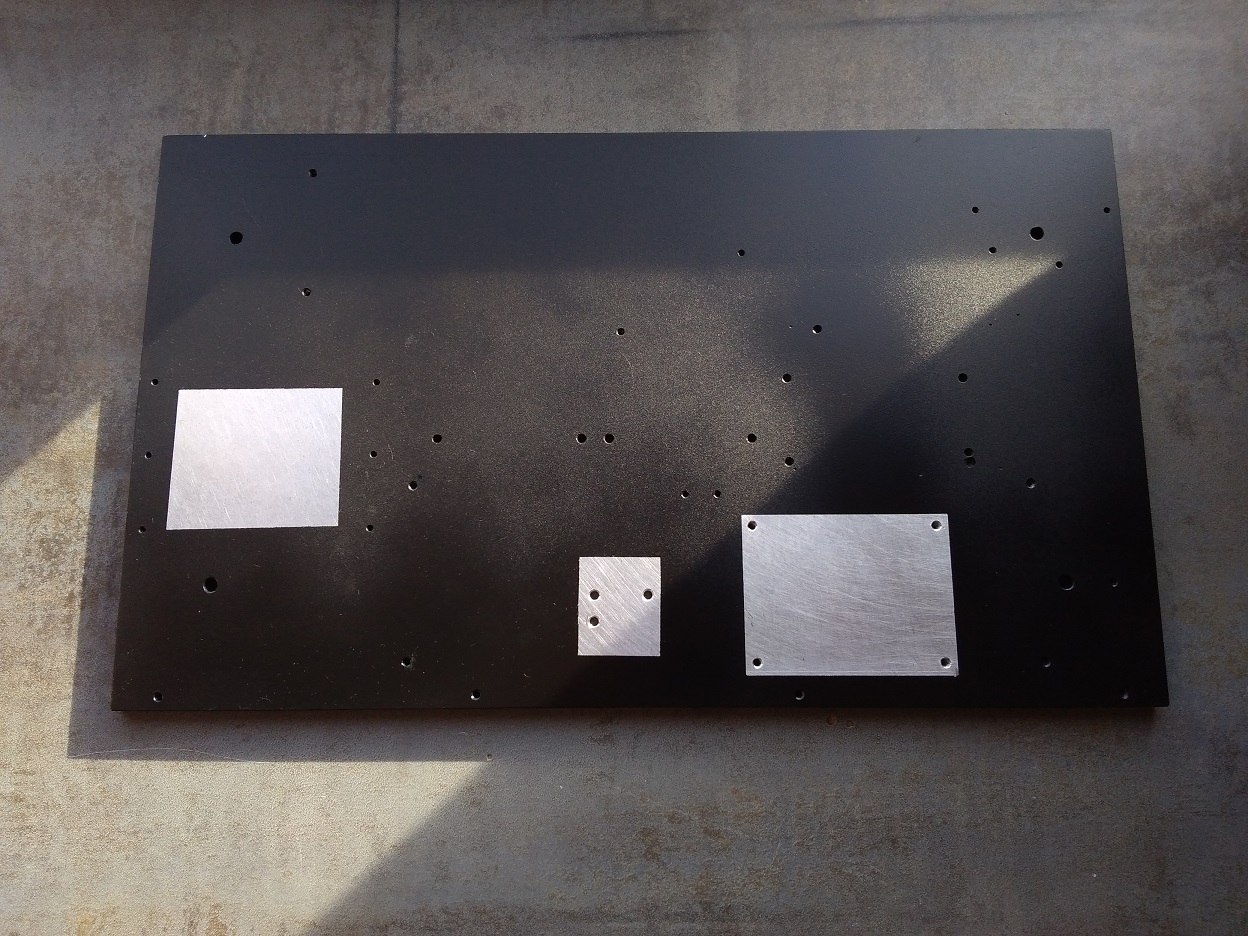

The beam table is finally ready!

La beam table est enfin prête!

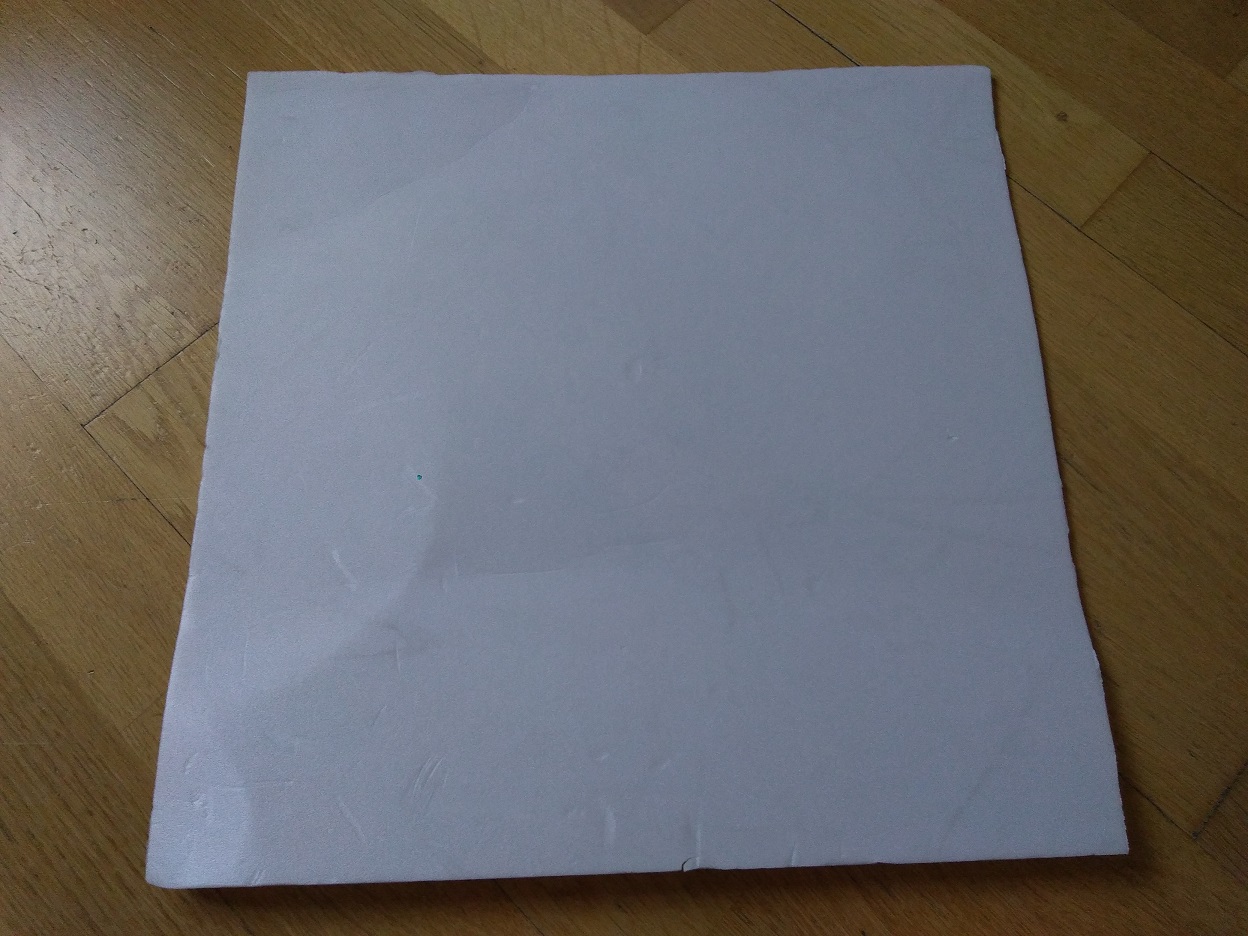

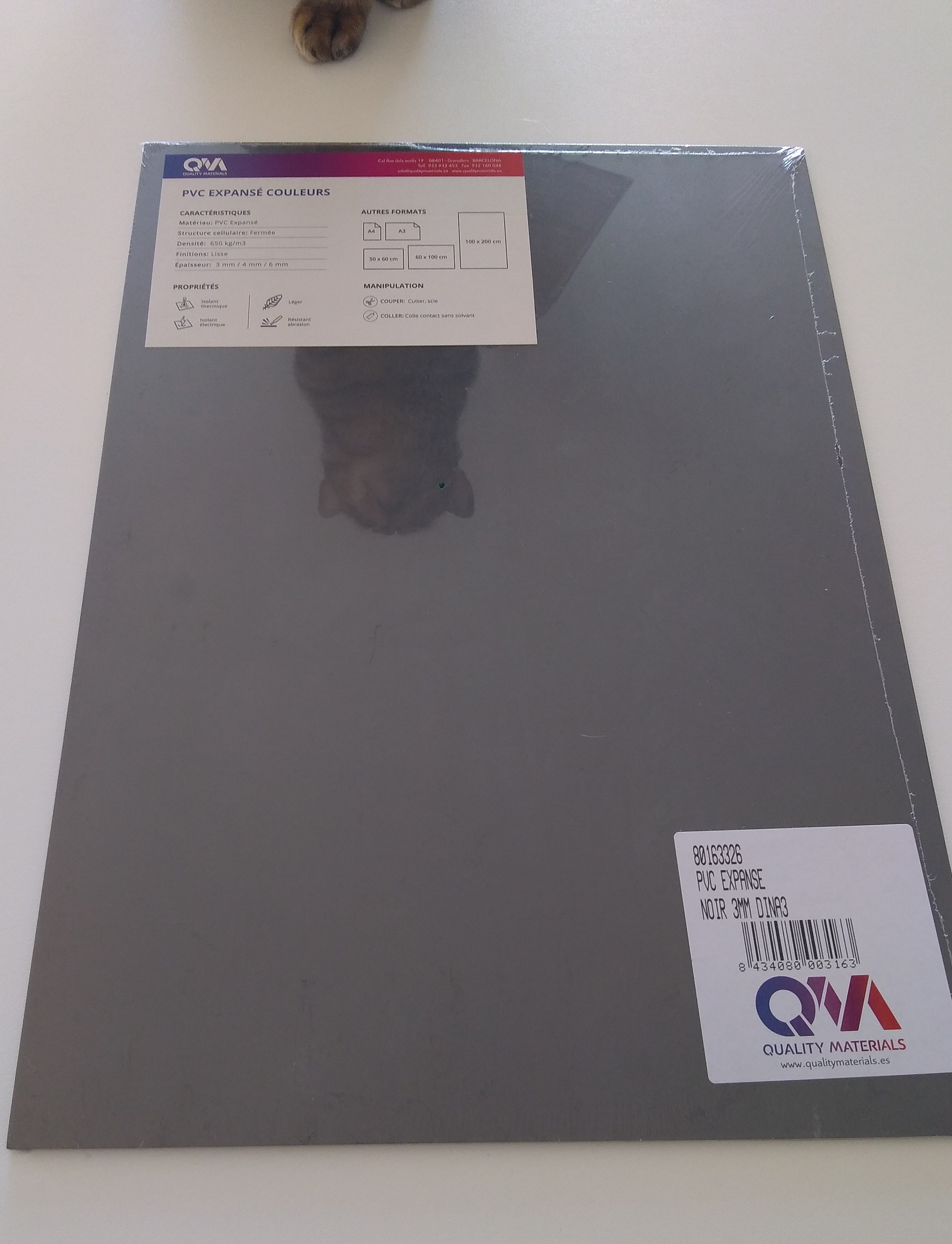

I use 3mm expanded PVC for thermal and electrical insulation

j’utilise du PVC expansé de 3mm pour l’isolation thermique et électrique

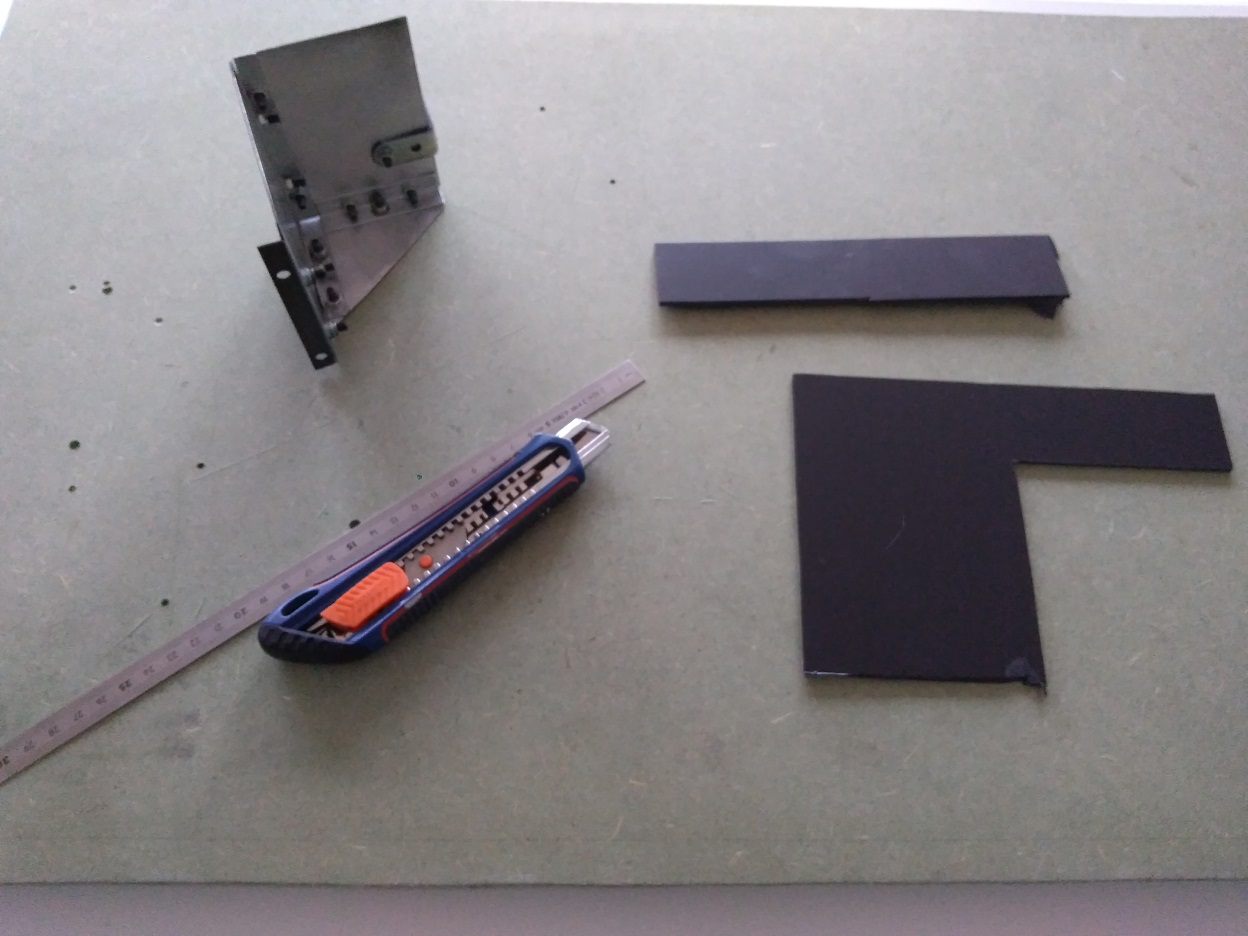

The air inlet passage for the Peltier

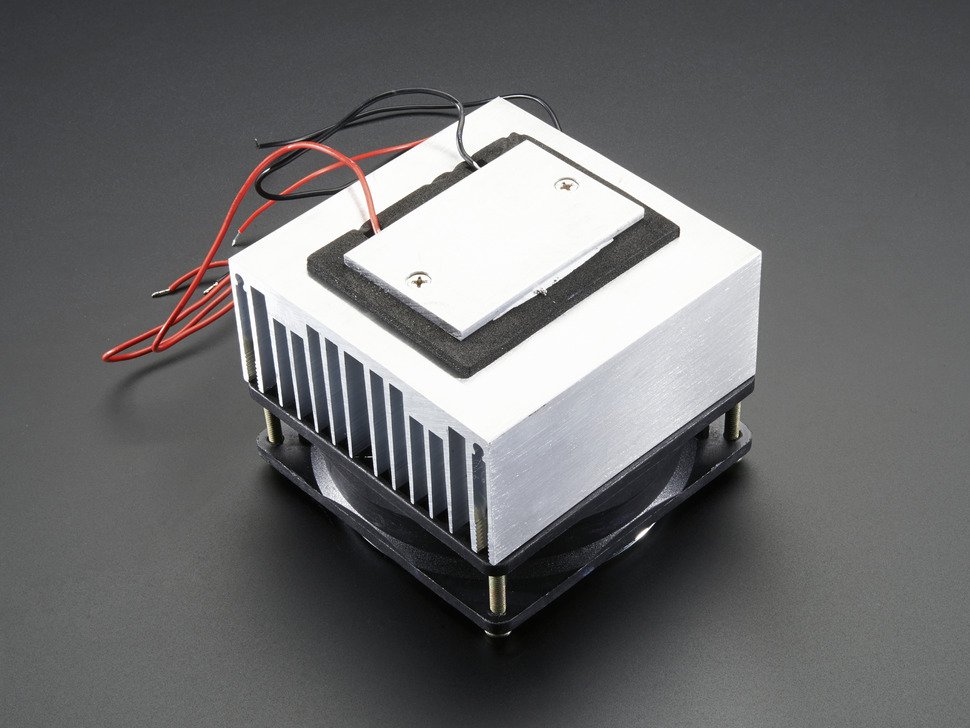

Le couloir d’entrée d’air pour le PeltierFor this laser prototype I tried the TEC module Adafruit 1335

Pour ce prototype de projecteur j’ai essayé le module Peltier Adafruit 1335

While the heatsink and the TEC are good, the fan is mediocre …

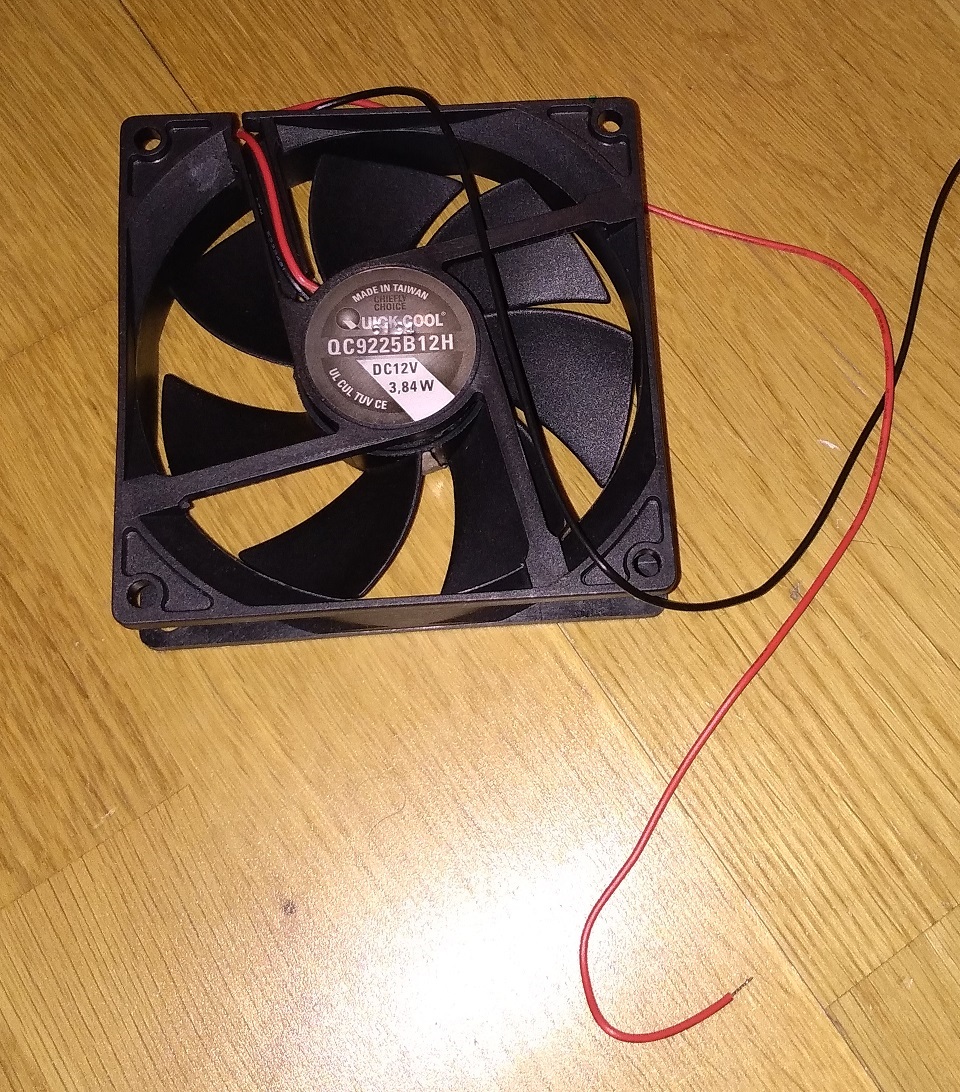

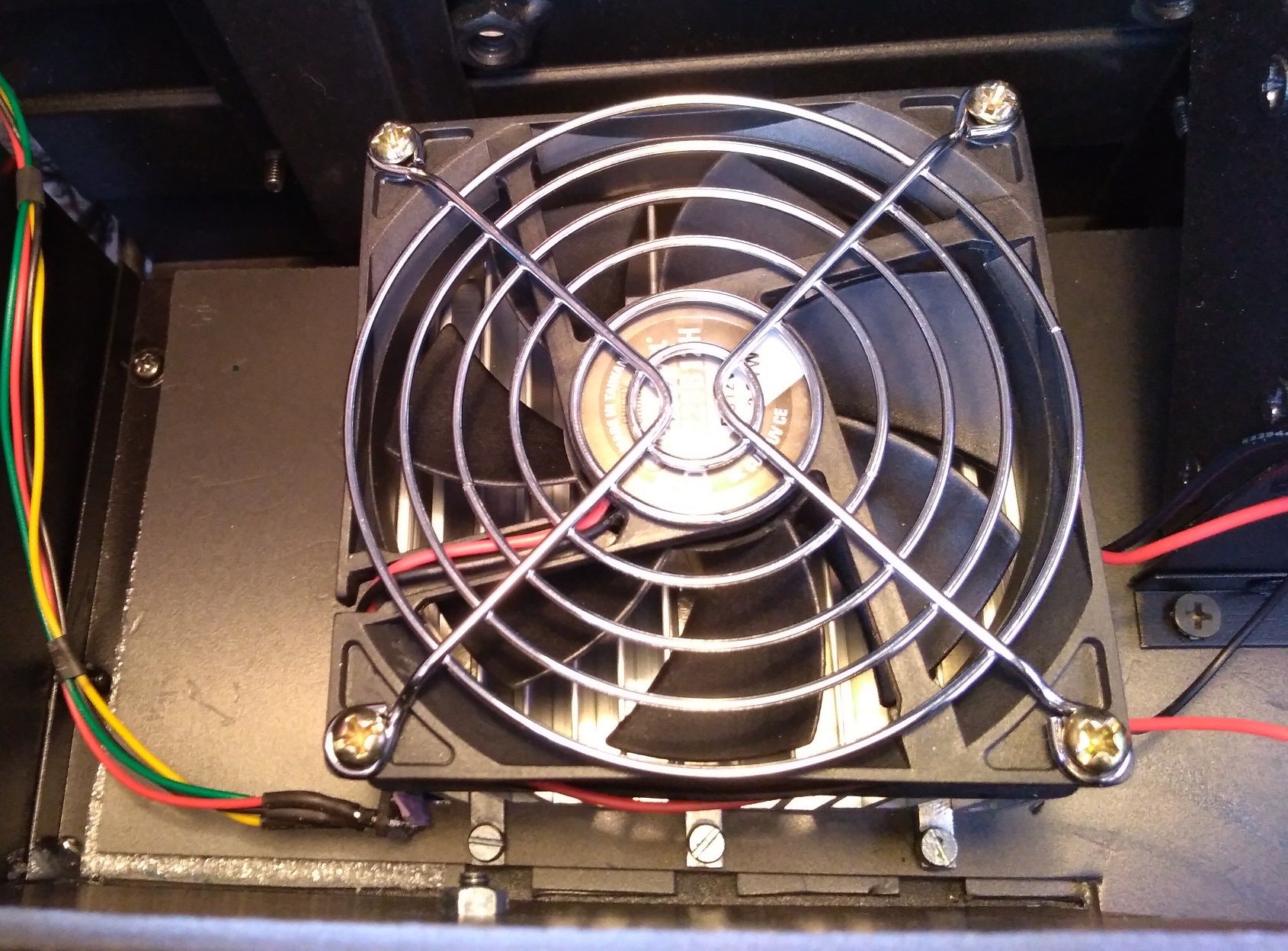

I replace it with this high performance fan

Alors que le dissipateur et le Peltier sont bien, le ventilateur est médiocre…

Je le remplace donc par ce ventilateur haute performance

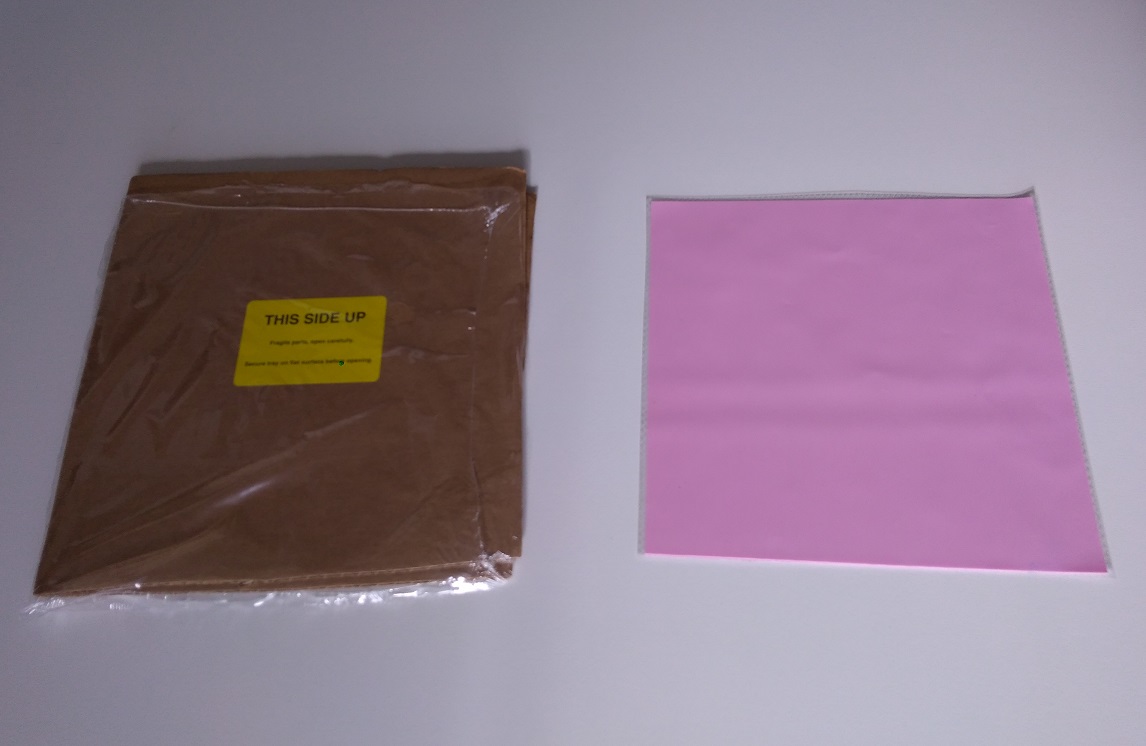

It is necessary to buy this thermal conductor of 1 mm thick

Il est nécessaire d’acheter ce conducteur thermique de 1 mm d’épaisseur

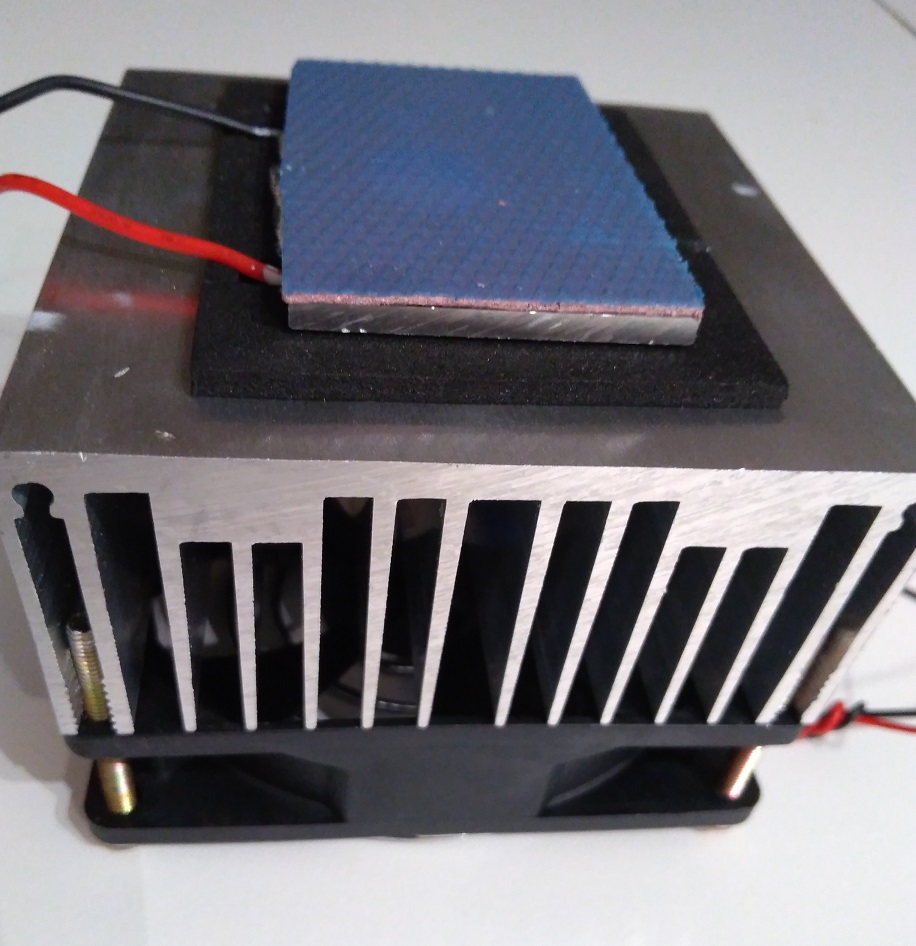

The idea is to improve thermal conduction and increase thickness

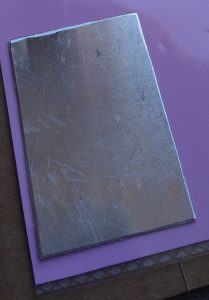

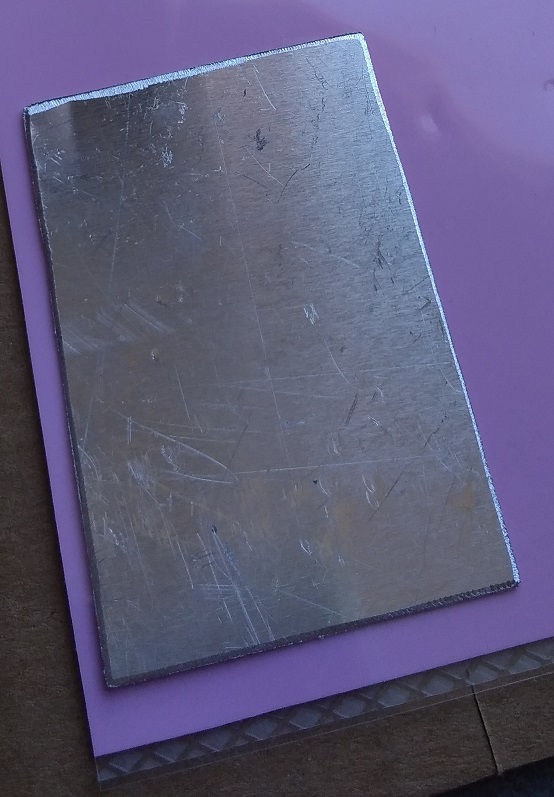

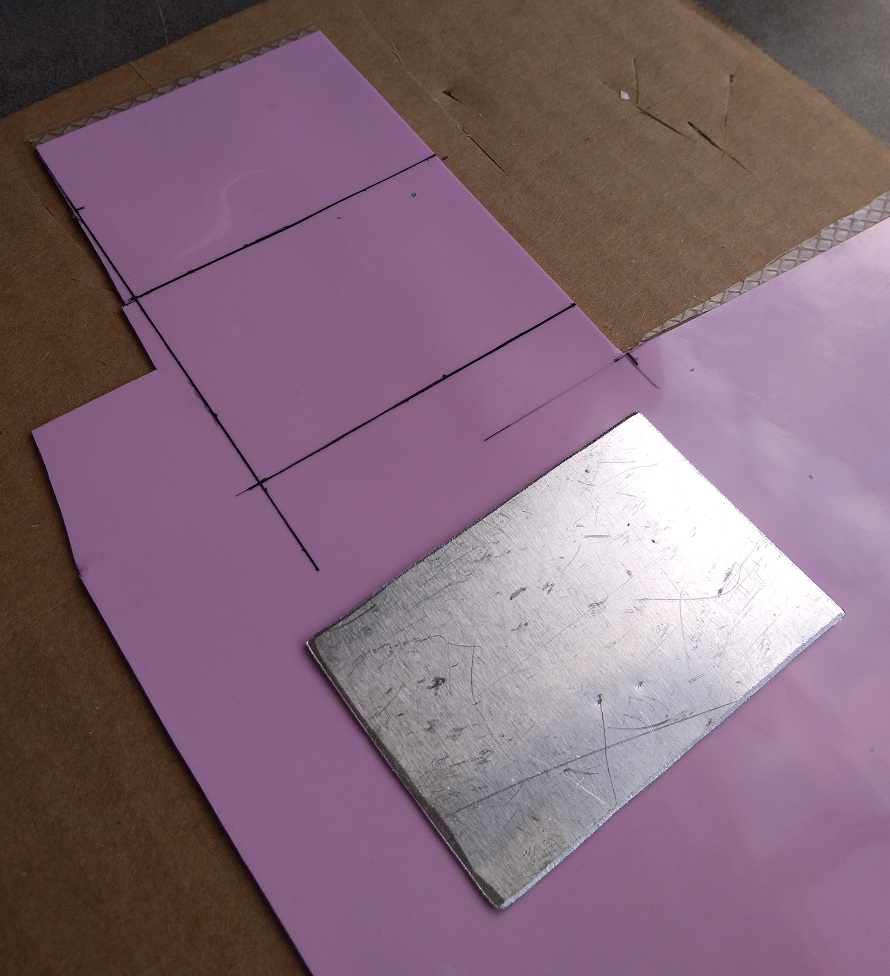

L’idée est d’améliorer la conduction thermique et d’augmenter l’épaisseur For this I cut a block of 0.8mm thick aluminum

Pour cela je découpe une cale de 0.8mm d’épaisseur en aluminium

As well as 2 layers of thermal conductor

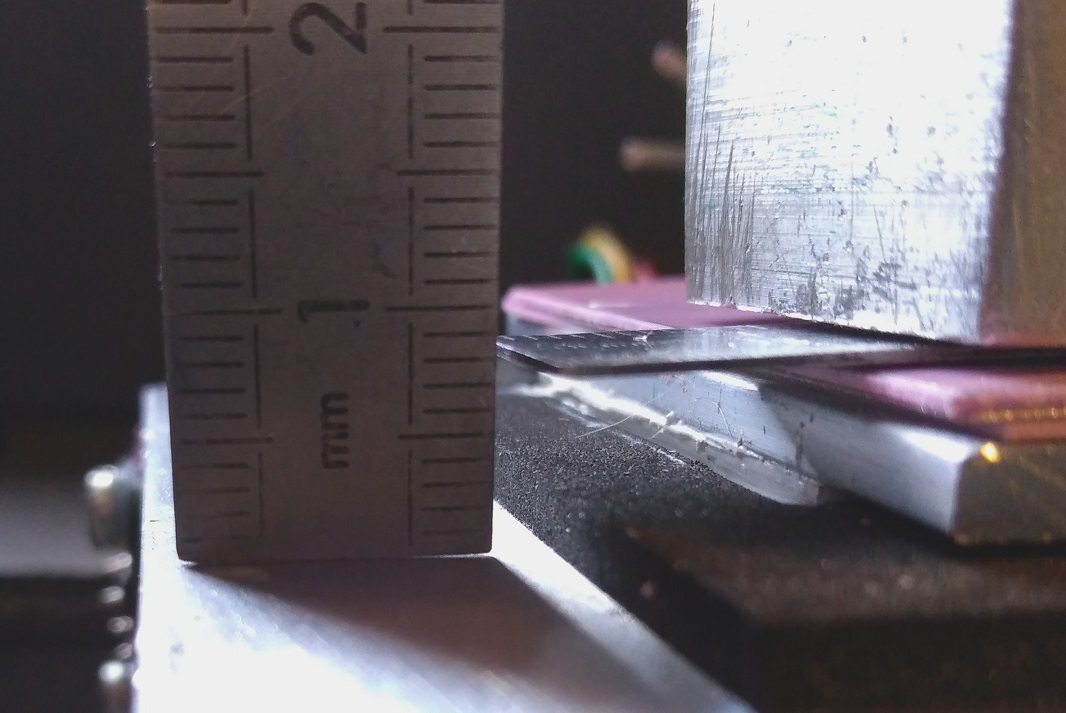

Ainsi que 2 couches de conducteur thermique In all we get 8mm without compression

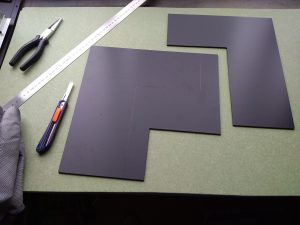

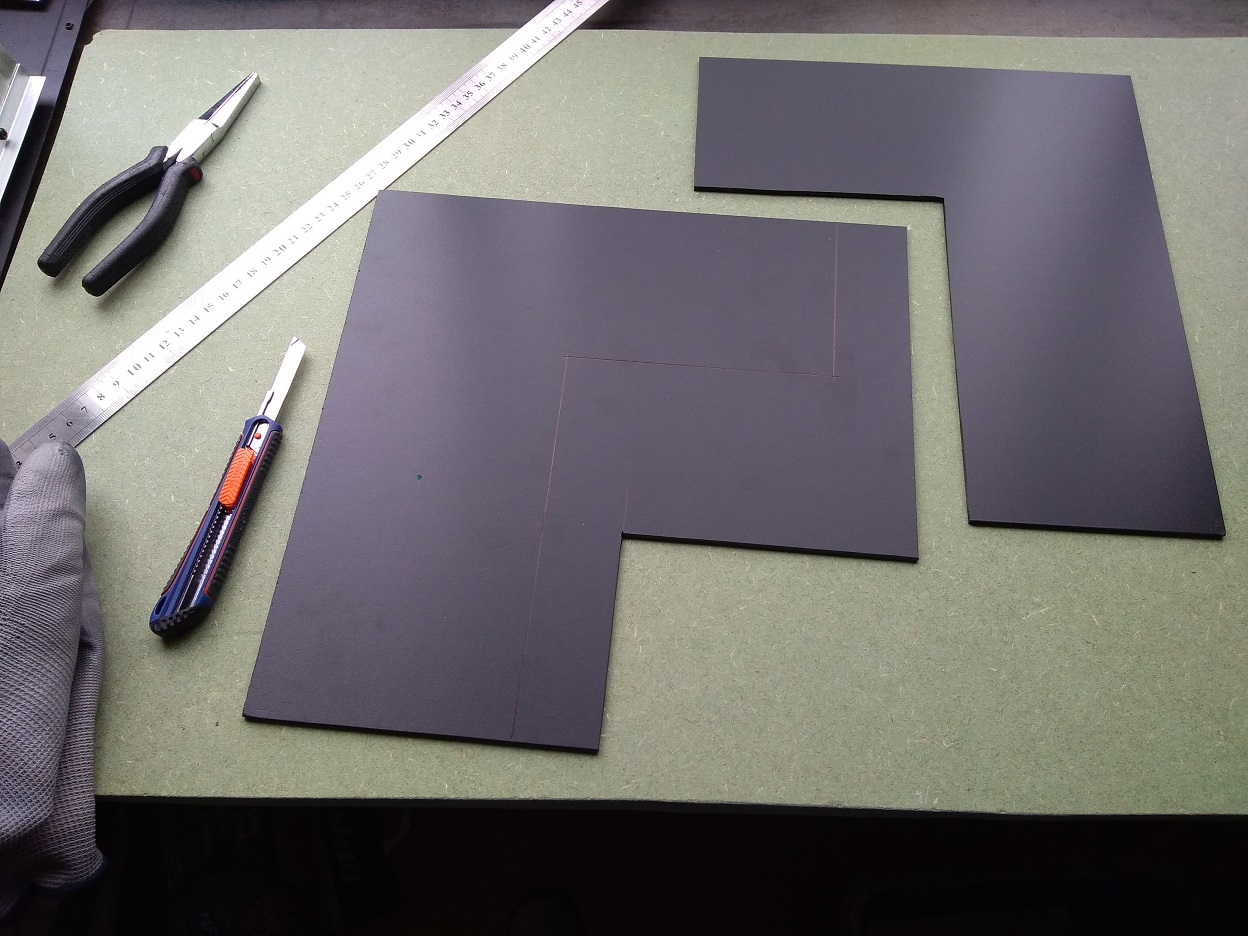

En tout on obtient 8mm sans compression Then you have to make PVC insulation cuts for the beam table

Ensuite il faut réaliser les découpes d’isolant PVC pour la beam table

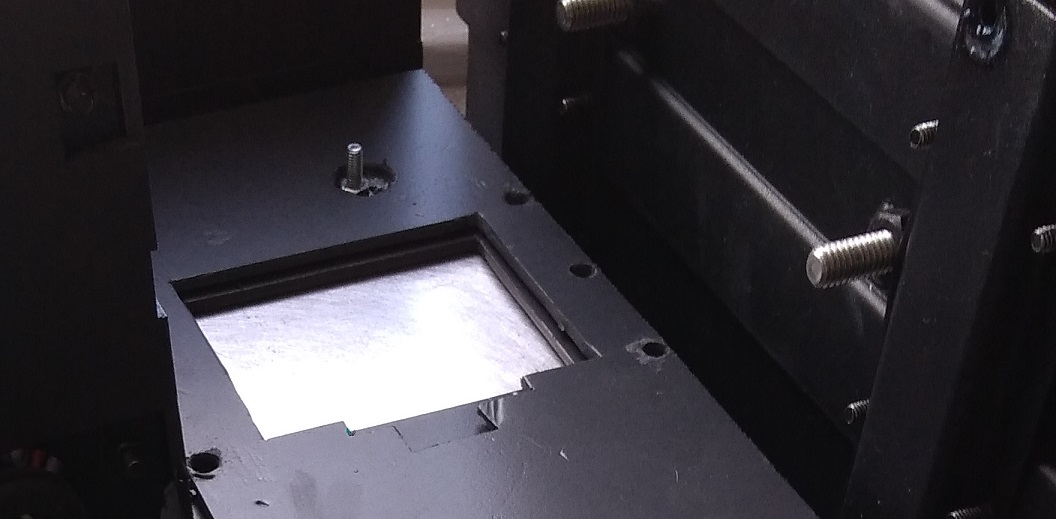

We leave a hole for the TEC module

On laisse un trou pour le module Peltier Between the 2 layers I put an even more efficient thermal insulation

Entre les 2 couches de PVC expansé se trouve un meilleur isolant thermique

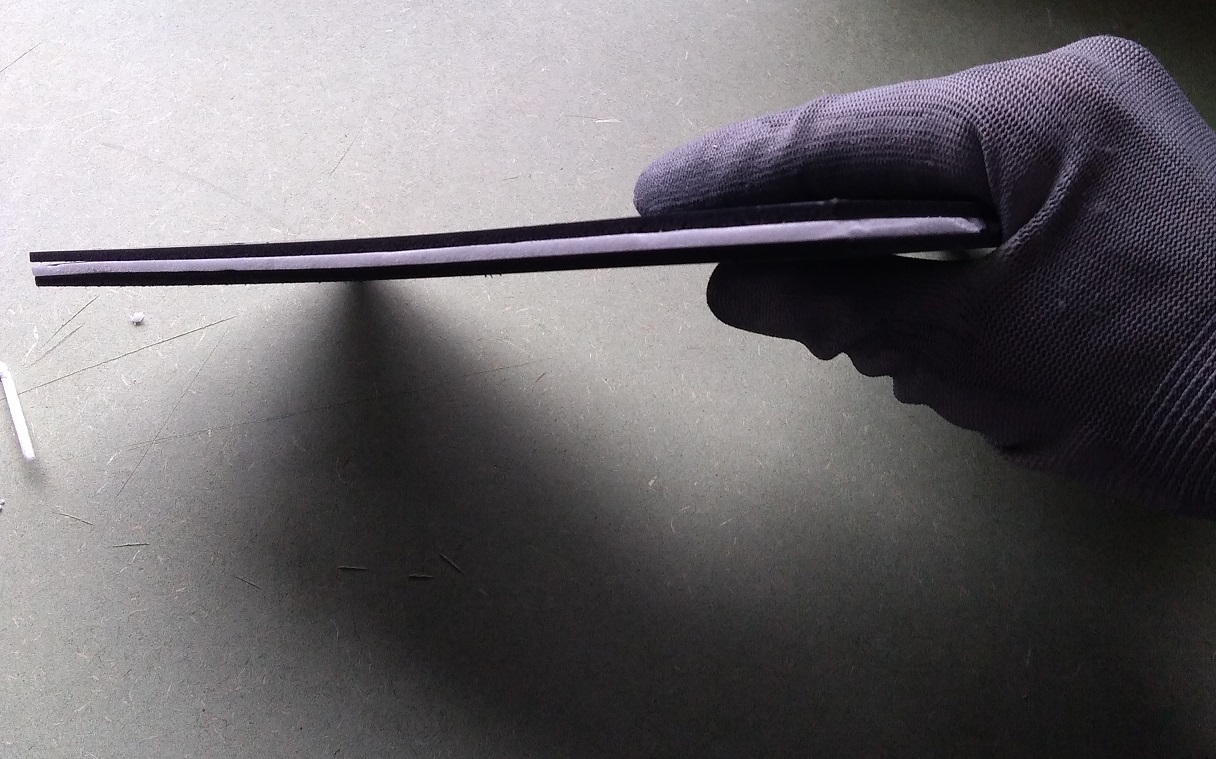

An insulation sandwich that should be between 6 and 7 mm thick compressed

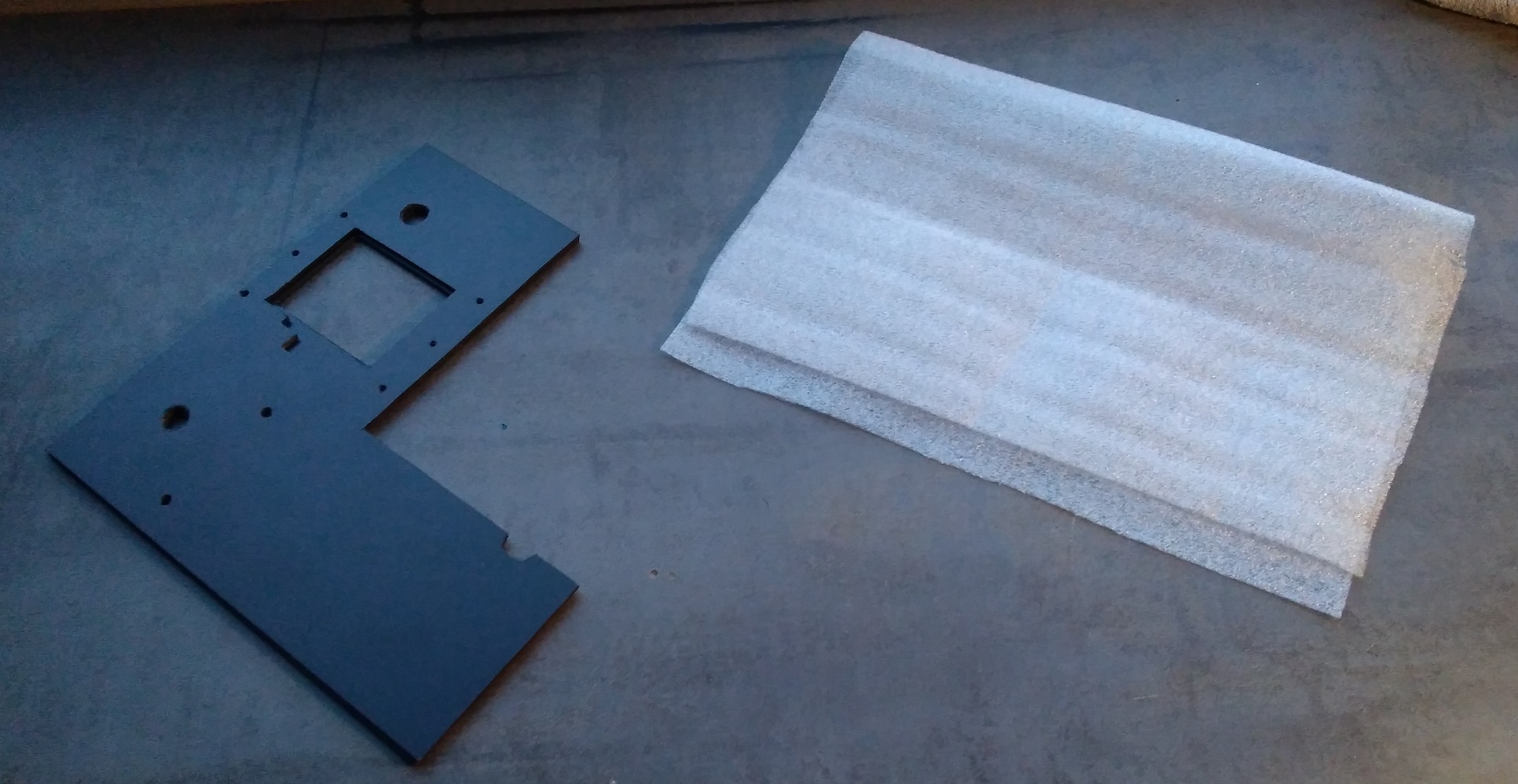

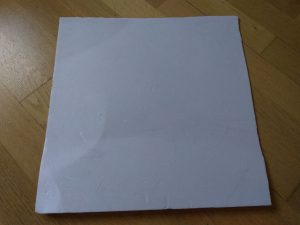

Un sandwich d’isolation qui doit faire entre 6 et 7 mm d’épaisseur compressé This packaging insulation is less thick and therefore perfectly suitable

Cet isolant d’emballage est moins épais et donc convient parfaitement The TEC module will be fixed using 3 aluminum bars of 1.5mm

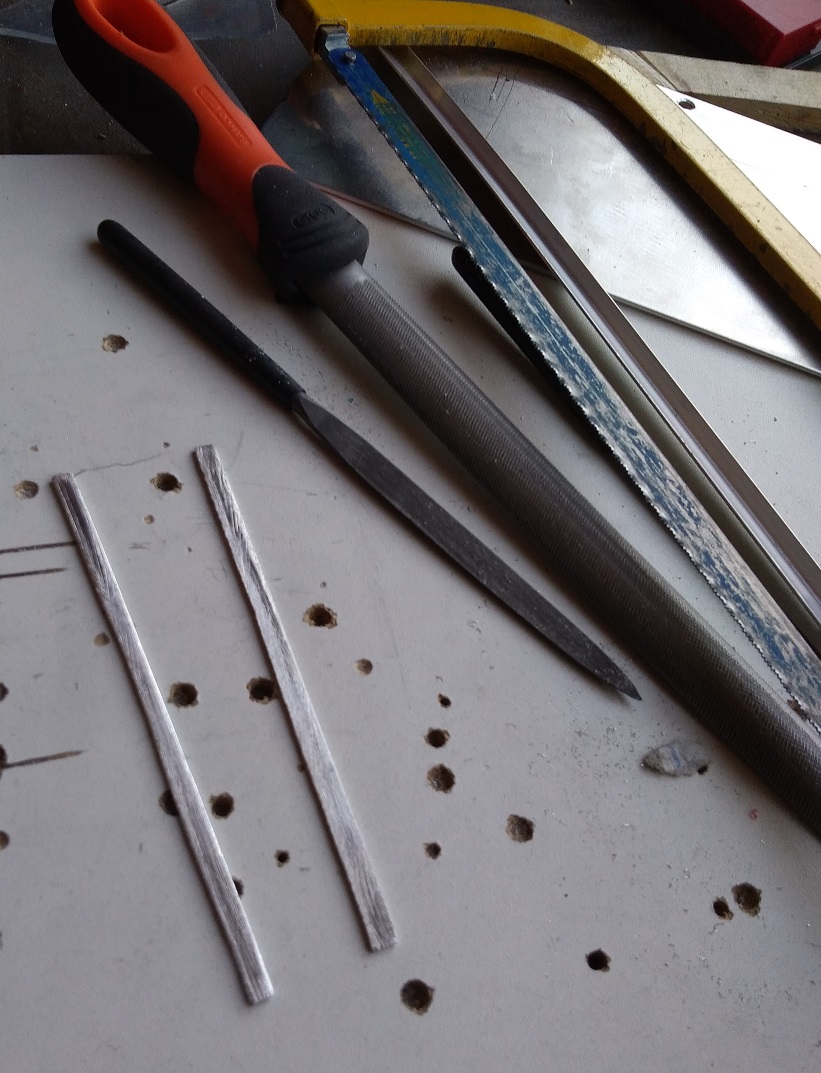

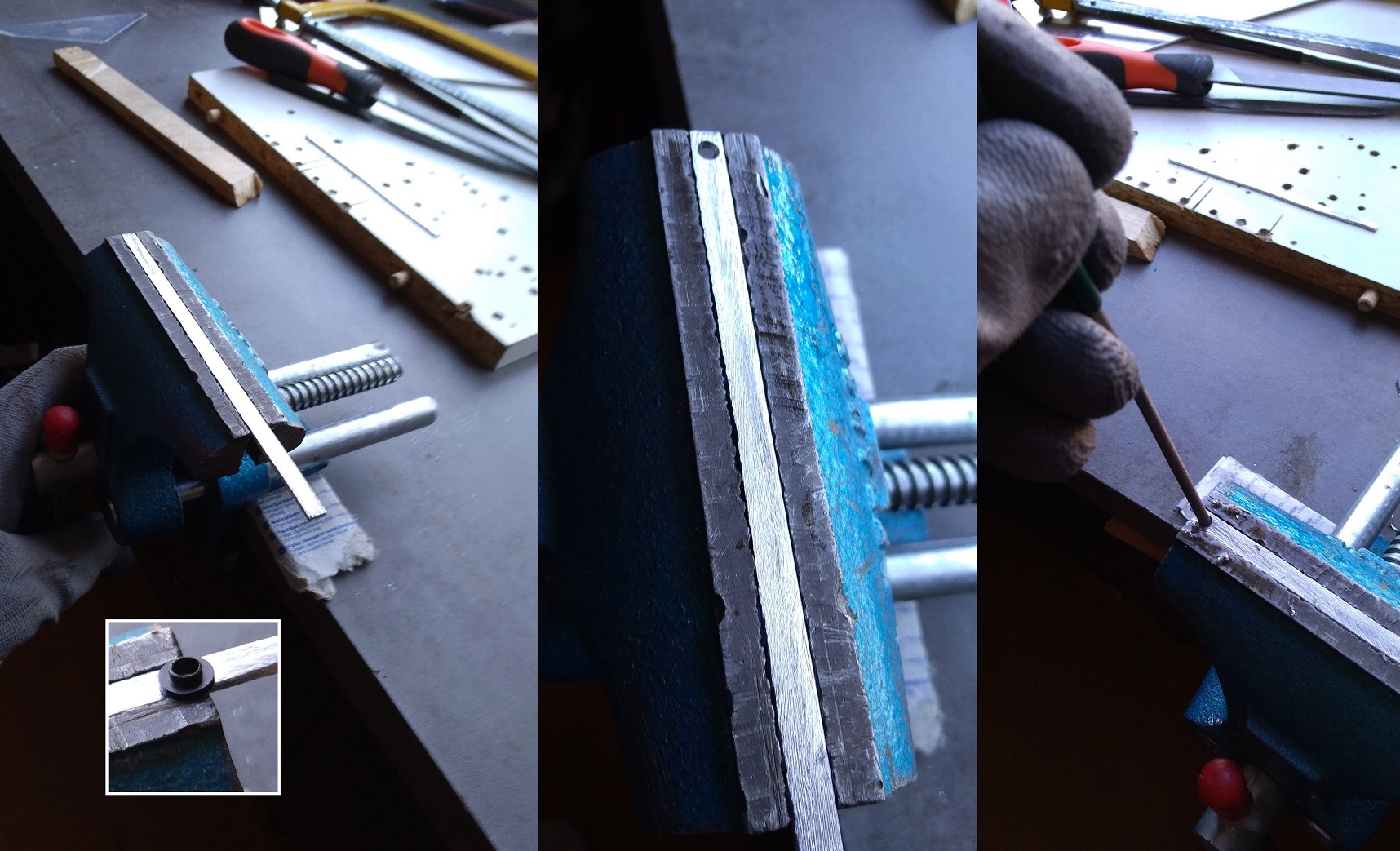

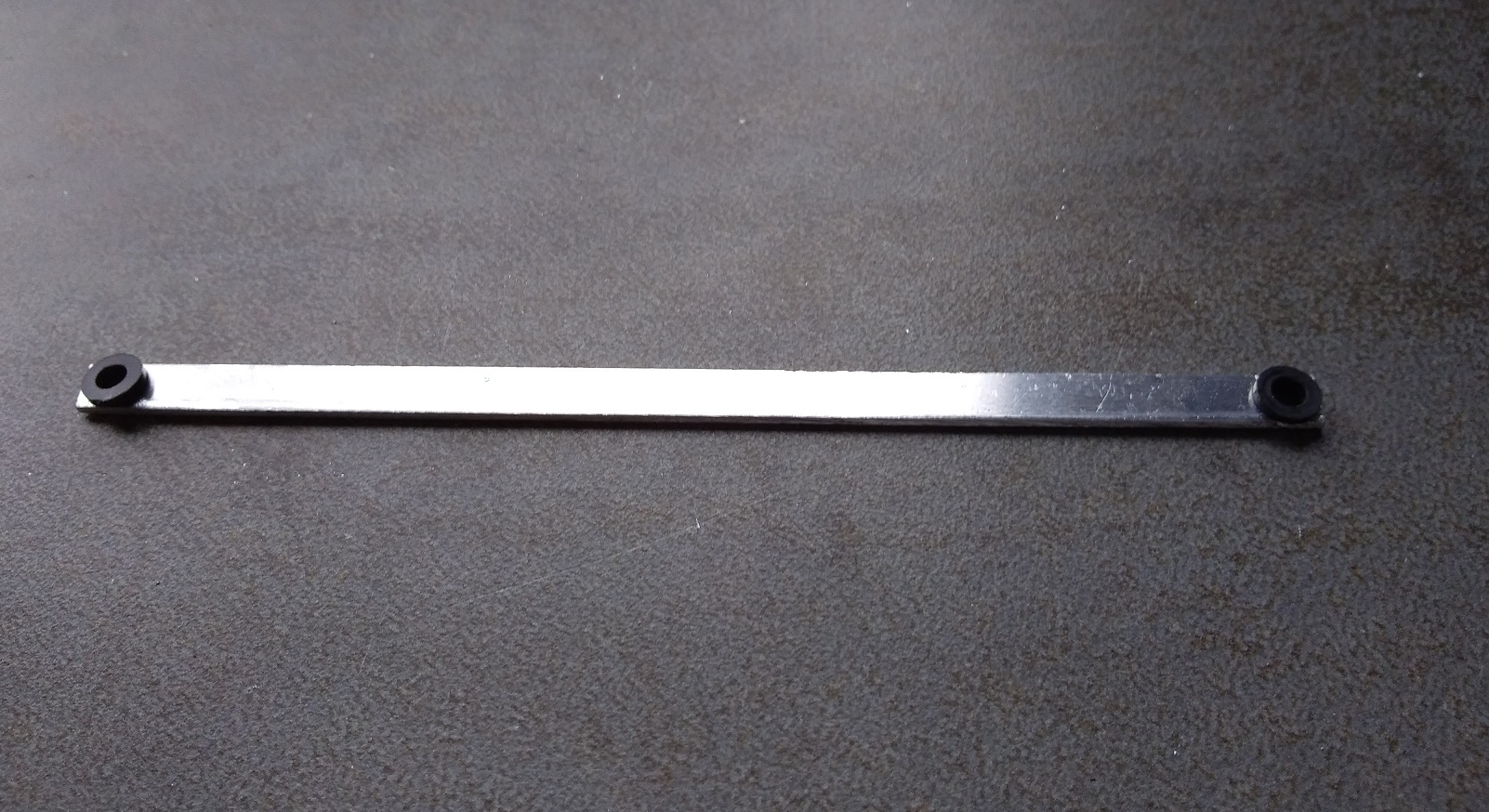

Le module Peltier va être fixé à l’aide de 3 barres aluminium de 1.5mm

3.5mm holes allow to use insulators for transistors

Les trous de 3.5mm permettent d’utiliser des isolants pour transistors This fastening system makes it possible to limit thermal bridges

Ce système d’attache permet de limiter les ponts thermiques

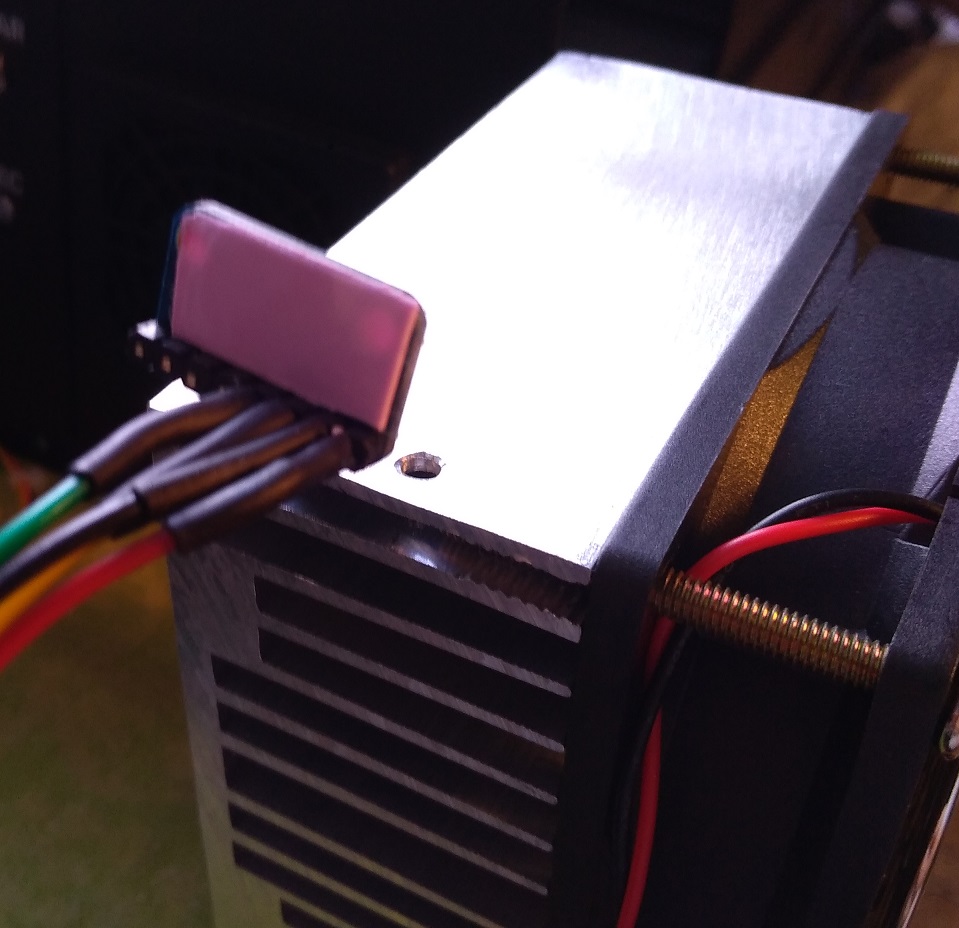

Setting up the temperature sensor with electrical insulation

Mise en place du capteur de température avec de l’isolant électrique

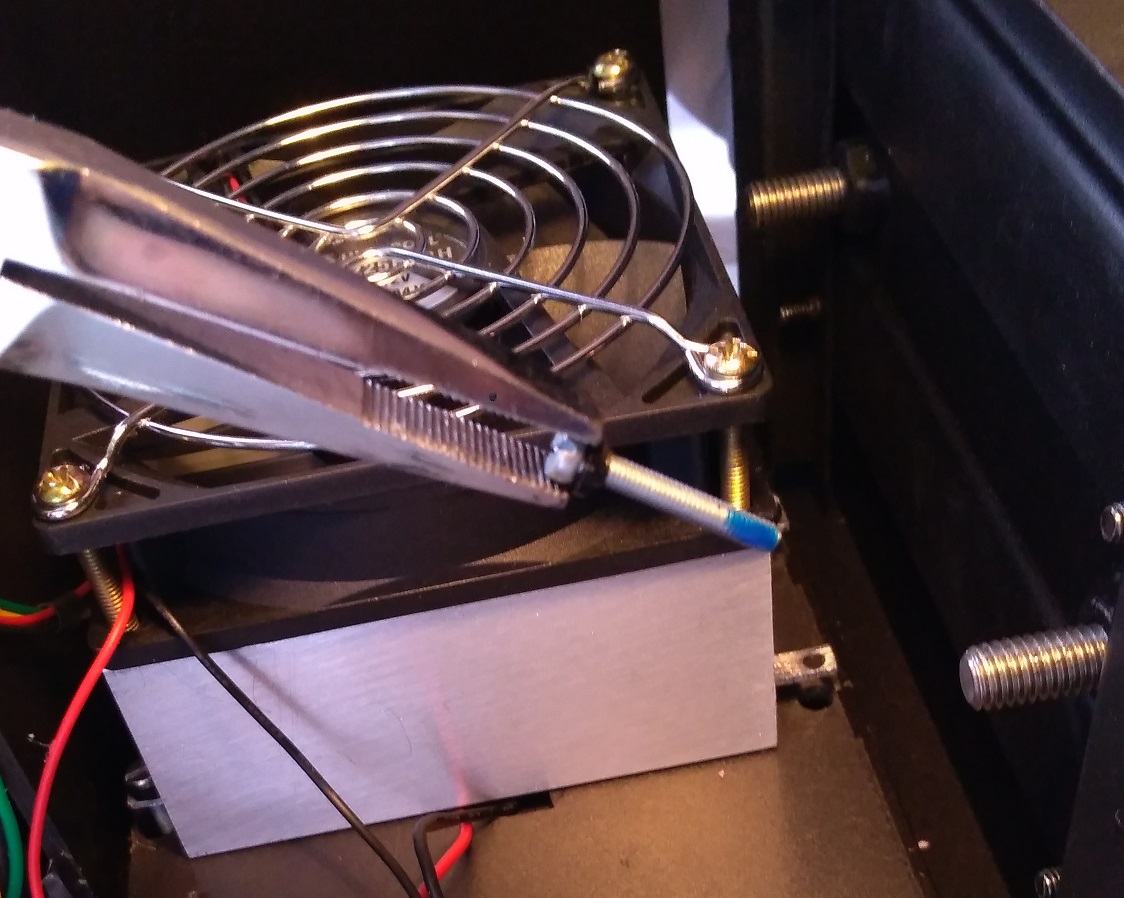

Put in the thread lock before screwing

Placer du frein filet avant le vissage

There are 6 screws to prepare

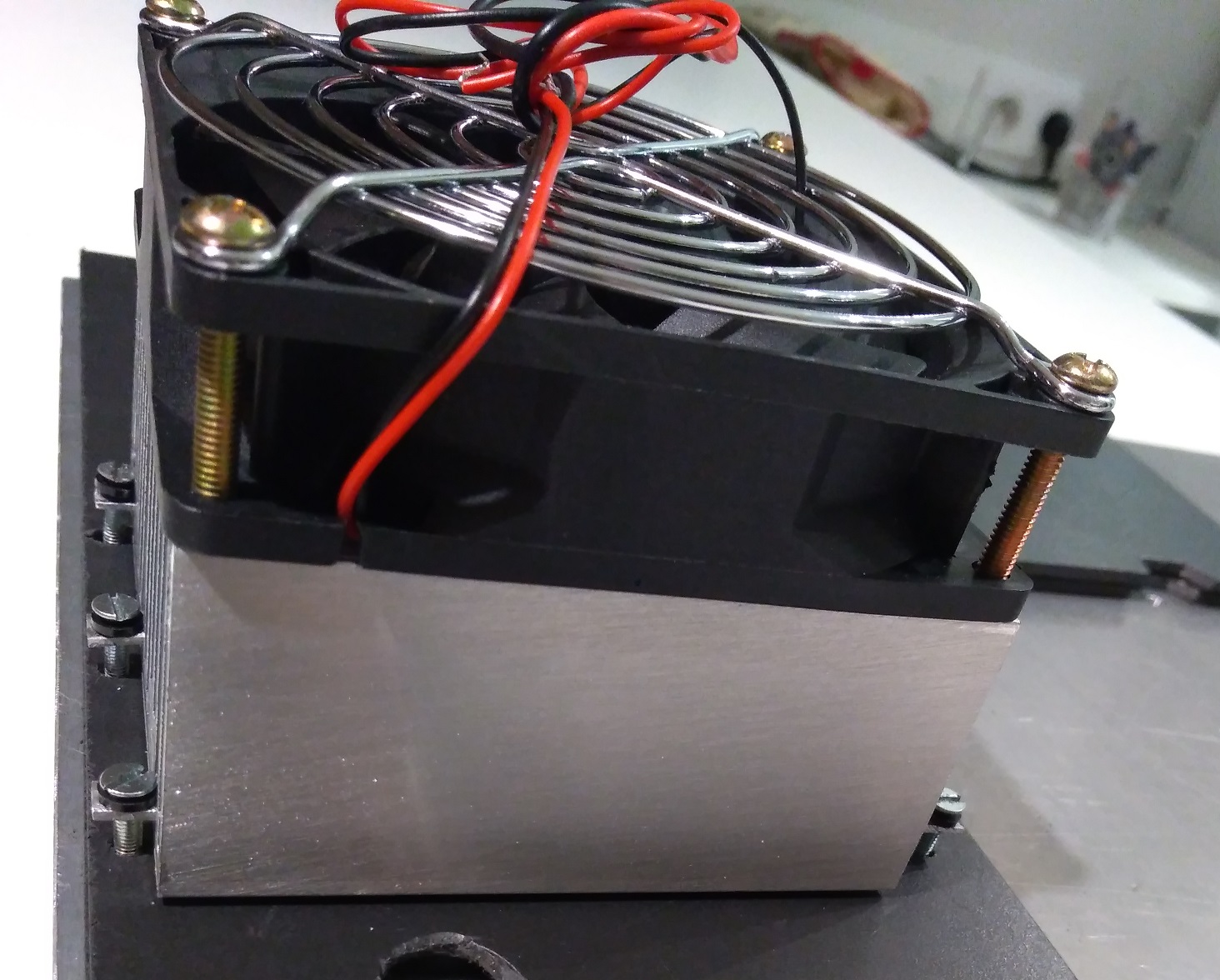

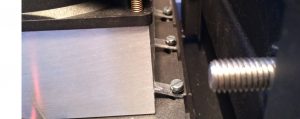

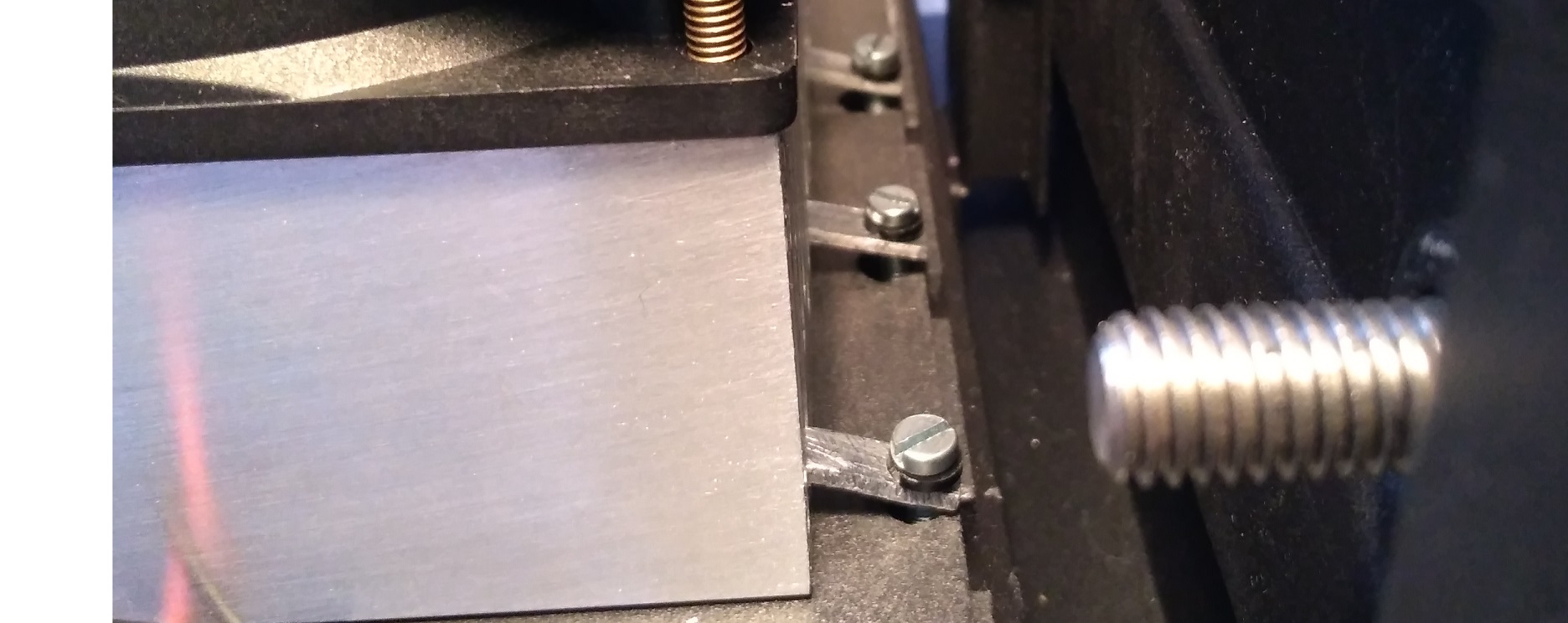

Il y a 6 vis à préparer The final screwing is done gradually on each screw

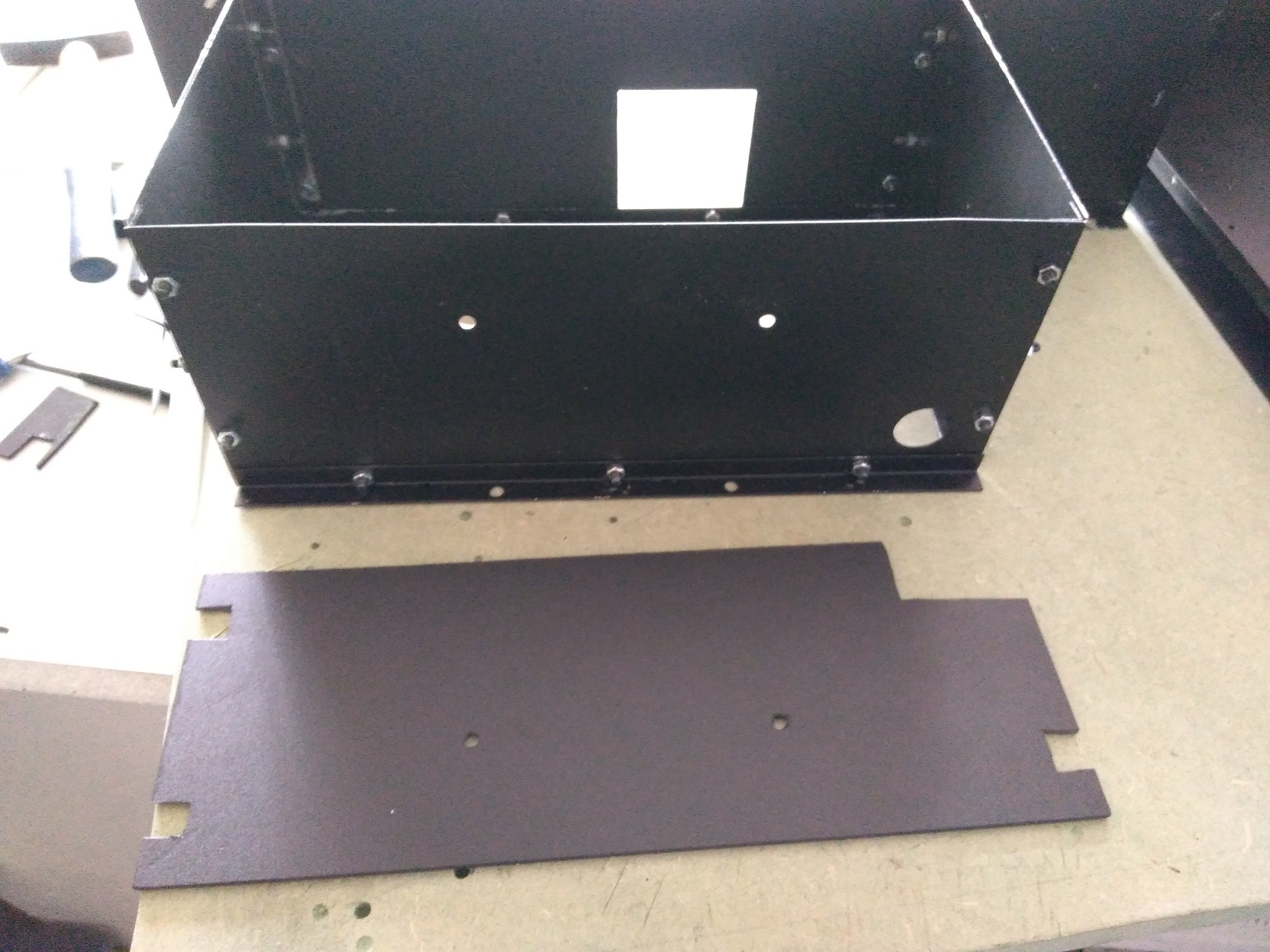

Le vissage définitif se fait progressivement sur chaque vis Finally I add expanded PVC on the partitions

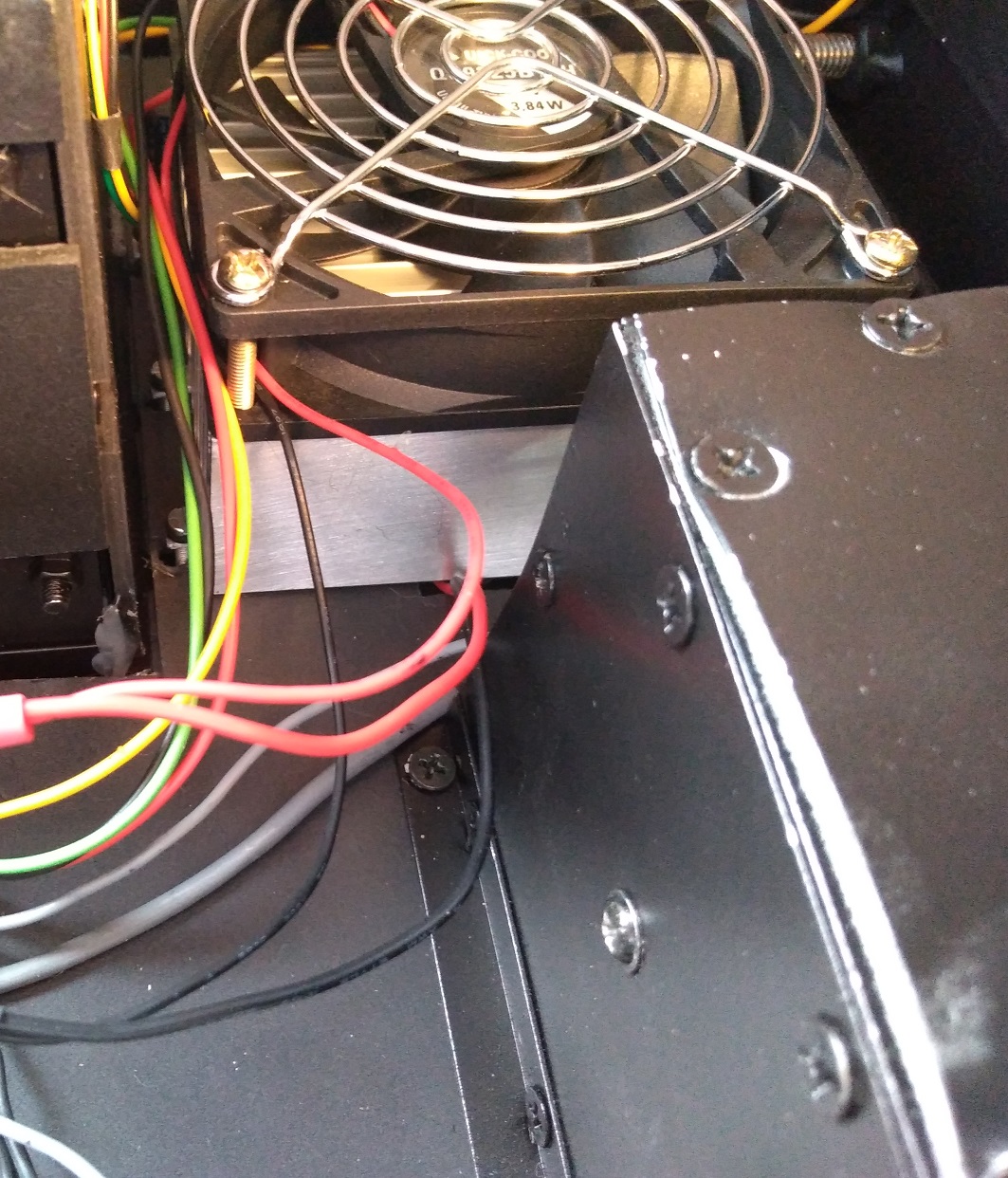

Pour finir j’ajoute du PVC expansé sur les cloisons Now the input air goes directly into the Peltier module
A test run must cool the beam table

Maintenant l’air rentre directement dans le module Peltier
Un test de fonctionnement doit reffroidir la beam table
