Website updated with progress

2025

LIVESHOW Application V1.0

Using this applicatin you can easly control a laser show!

There are plenty of frames that have default colors or you can pick one defined

Then it’s easy to create an advanced shades of color by choosing an effect

Effect can also be related to blankings or animated movements

4 differents color’s cycles are possible: 16 / 32 / 64 / 128

Without any external computer you just got the most advanced laser shades

999 bits colorimetry test 1

more infors soon…

ILDA file reader and uploader into the SSD memory forever. This unique feature is available only in Laser-Maker hardware. Save network and computer usage!

Next application  upgrade will enable the 27 bits colorimetry inside an original menu =)

2024

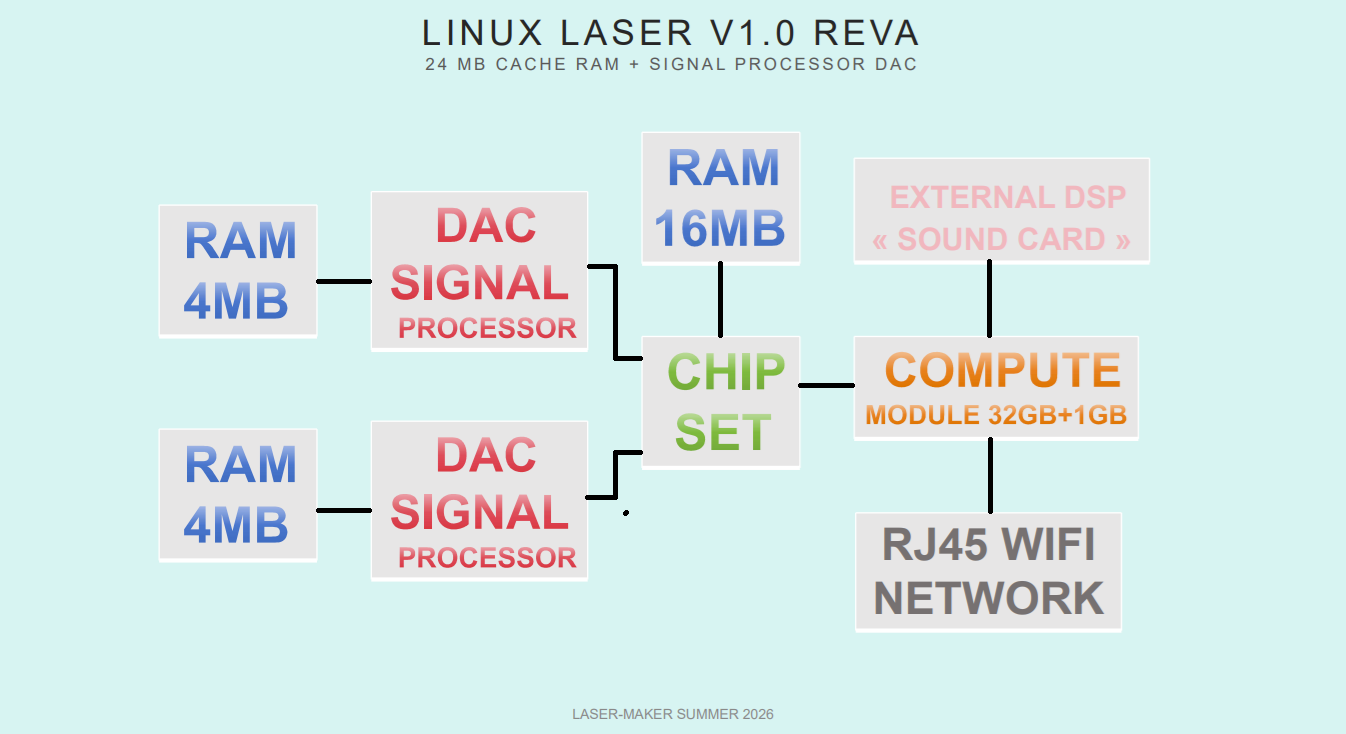

DAC is controled by the on board SOC computer (click above picture)

Within latest technologies available since 2022 this is the updated motherboard

Double 12 bits DAC means 2 DAC linked to each others, more infos soon.

9 bits per col. has shown clearly better shades of colors

2023

The second daughter board is now assembled

This allows unit tests to be performed.

The harsh conditions of summer with the hot weather are useful!

A new cooling system is to be expected.

As well as a new motherboard with a new feature



2022

So far, 2 mother boards and 1 daughter board has been assembled

One set is currently used in the preview version of the laser

Which have shown very good results on the ILDA input

I think some people said that it was not possible to obtain such result with QM2000

Linux laser DAC prototype results were more than WE expected!

it’s clearly a better color mix with more shades

Now let’s test the final hardware DAC with the second motherboard…

Test done with the internal memory and some test pattern

smooth shade of colors with very fast blanking

more information to come



…
