Website updated with progress

2024

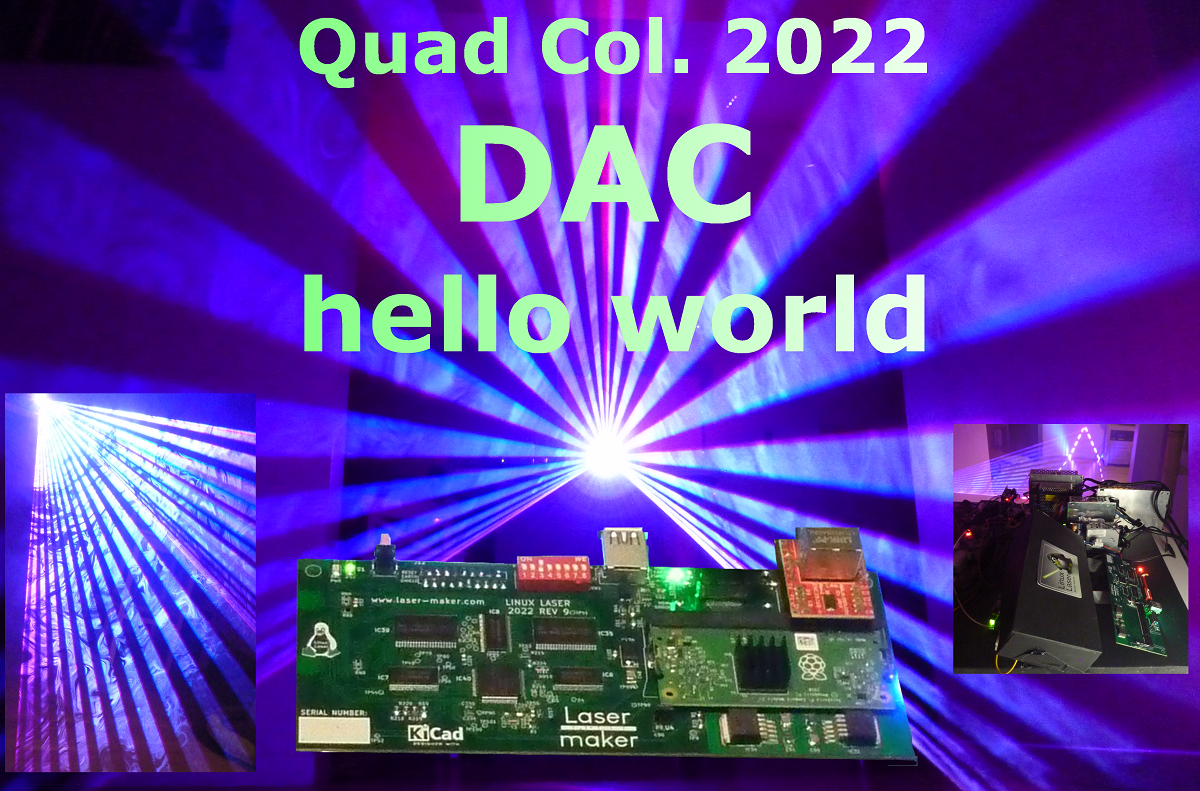

DAC is controled by the on board SOC computer (click above picture)

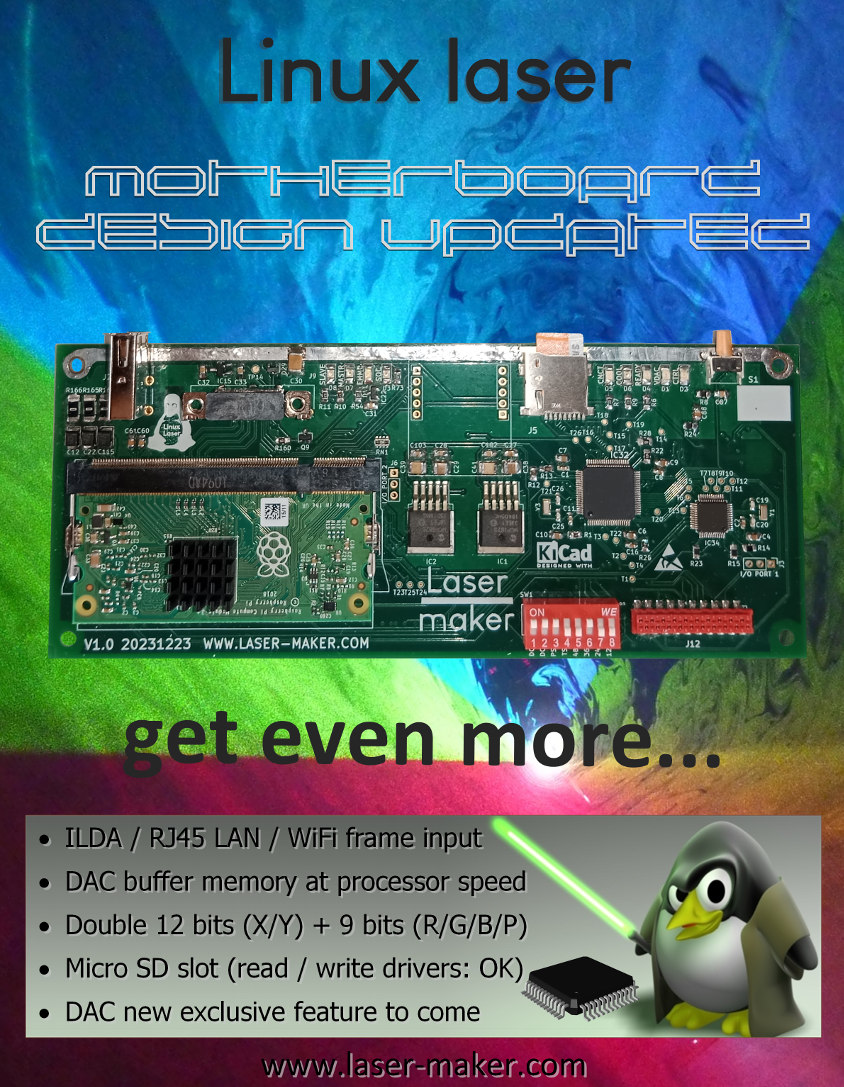

Within latest technologies available since 2022 this is the updated motherboard

Double 12 bits DAC means 2 DAC linked to each others, more infos soon.

9 bits per col. has shown clearly better shades of colors

2023

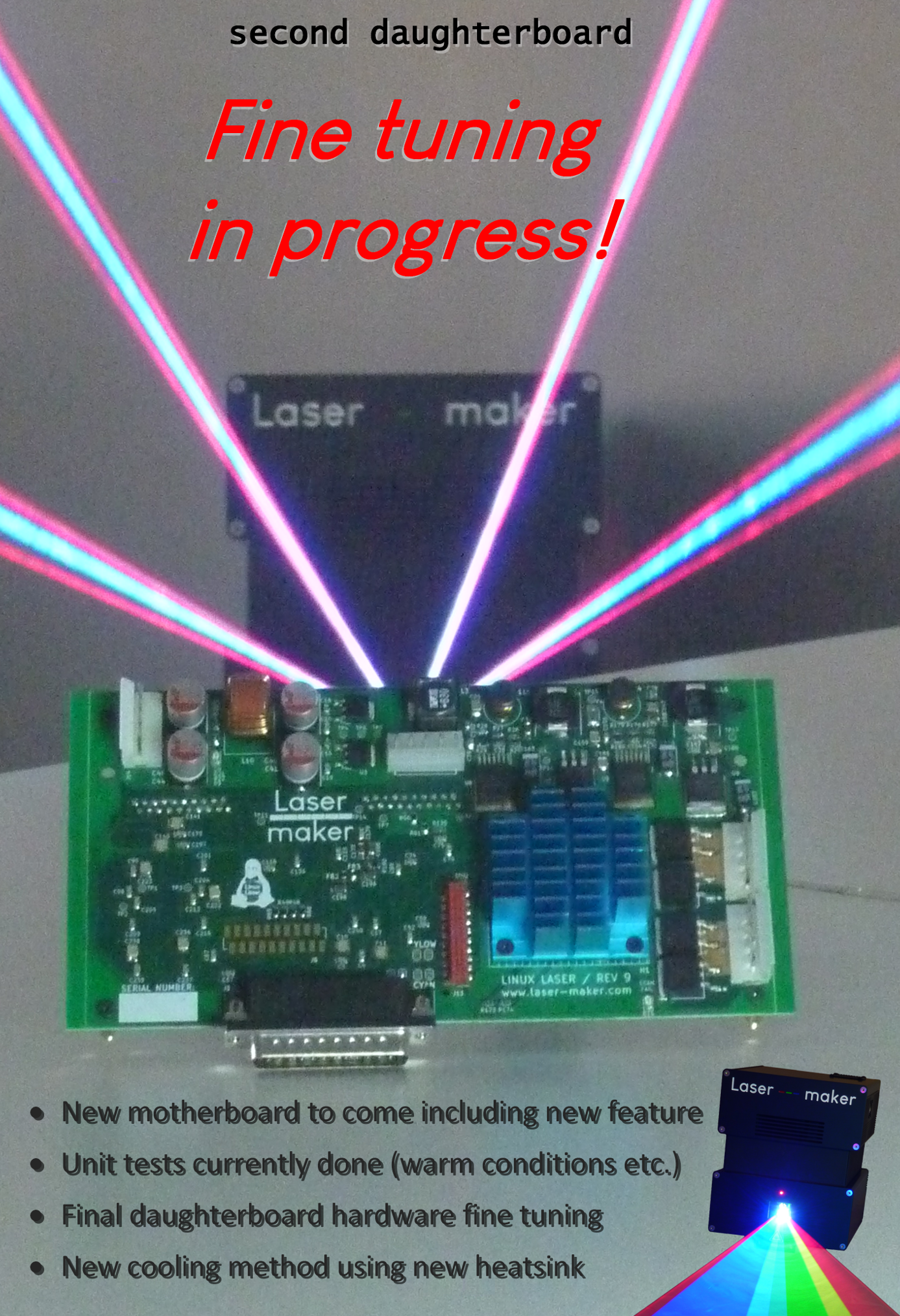

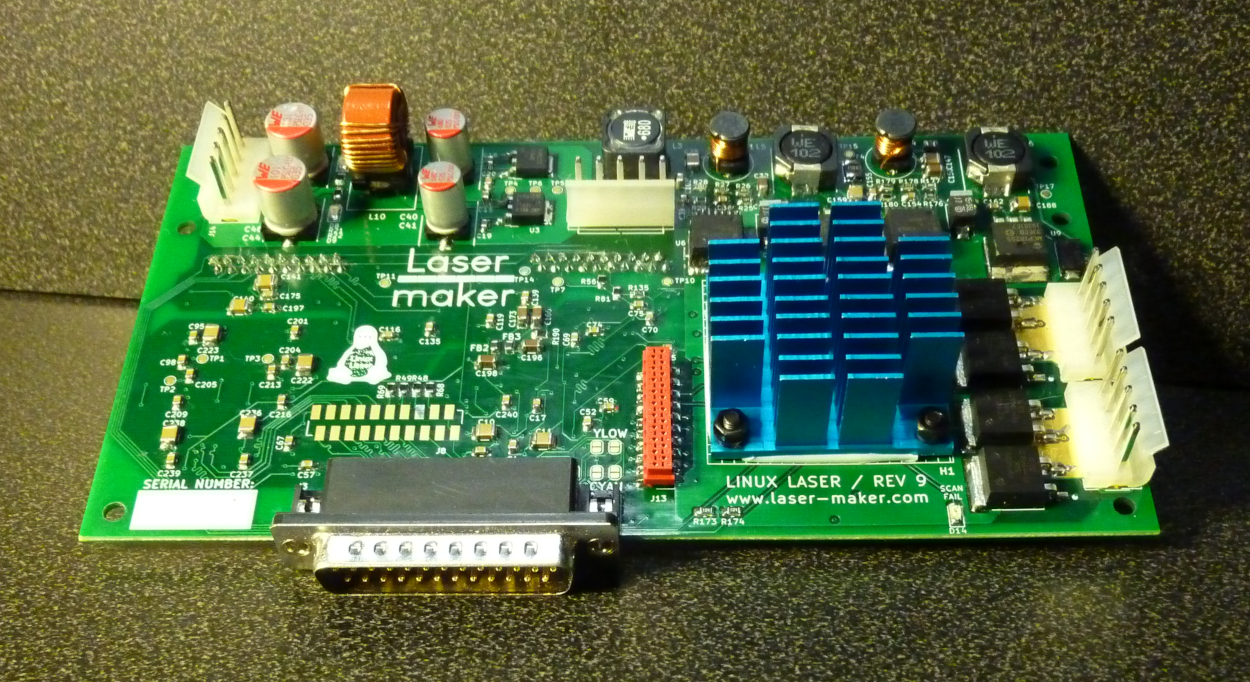

The second daughter board is now assembled

This allows unit tests to be performed.

The harsh conditions of summer with the hot weather are useful!

A new cooling system is to be expected.

As well as a new motherboard with a new feature



2022

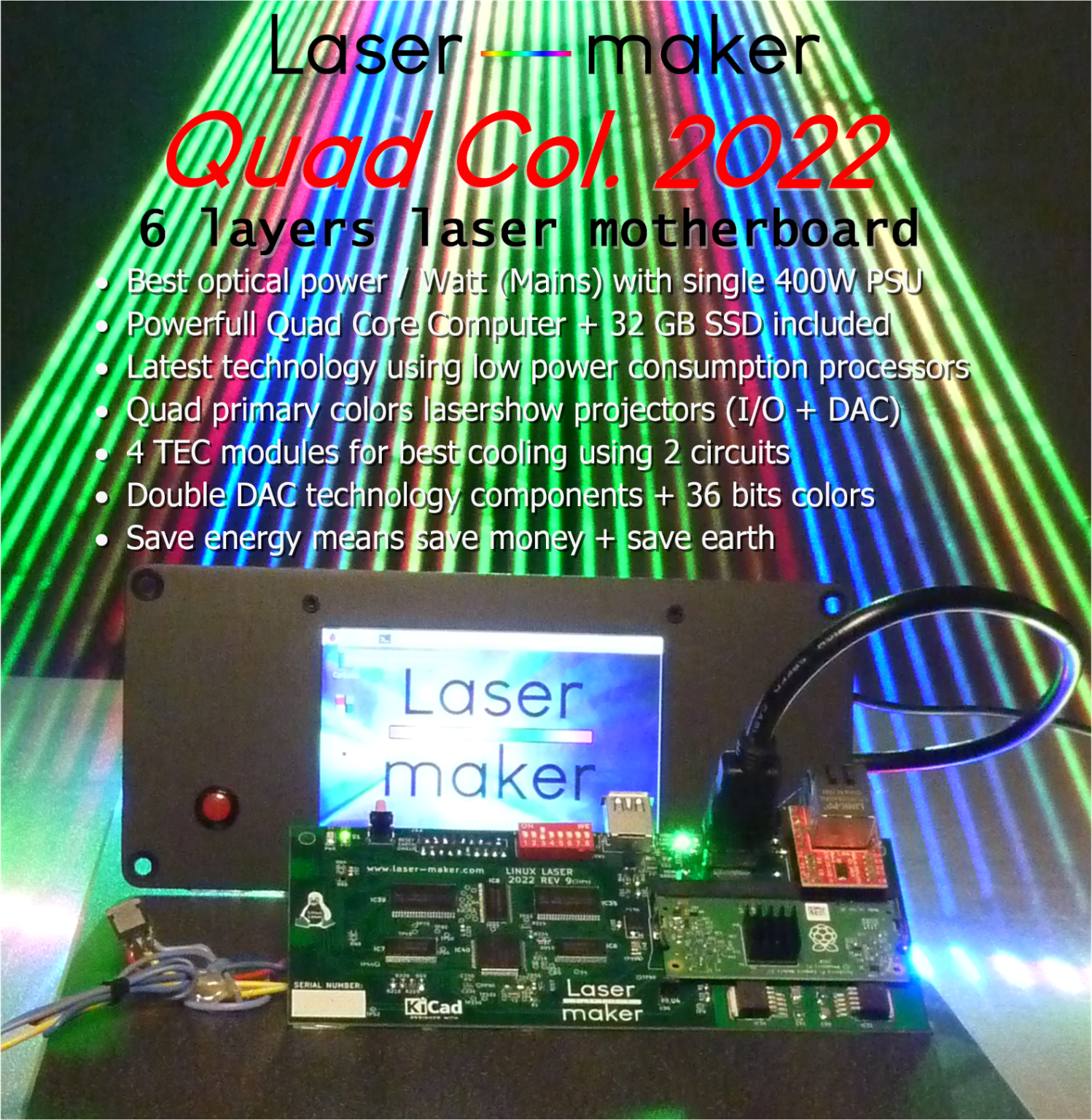

So far, 2 mother boards and 1 daughter board has been assembled

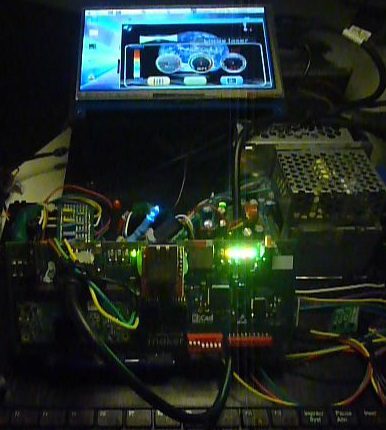

One set is currently used in the preview version of the laser

Which have shown very good results on the ILDA input

I think some people said that it was not possible to obtain such result with QM2000

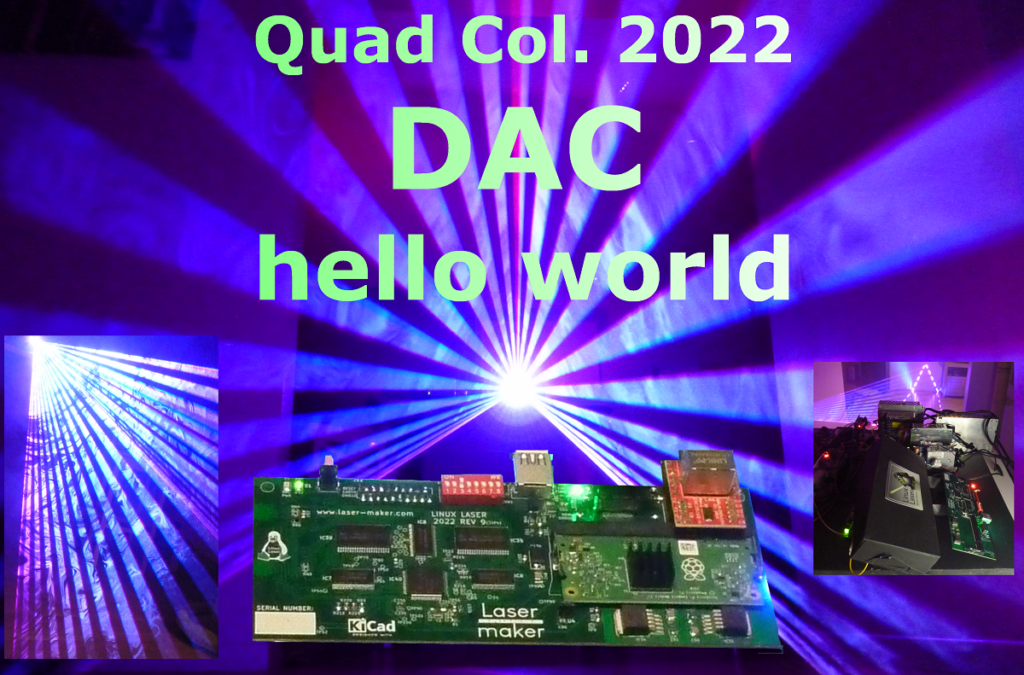

Linux laser DAC prototype results were more than WE expected!

it’s clearly a better color mix with more shades

Now let’s test the final hardware DAC with the second motherboard…

Test done with the internal memory and some test pattern

smooth shade of colors with very fast blanking

more information to come
